Mining Wire Mesh
Product Overview
Mining wire mesh, also known as mine support mesh or underground reinforcement mesh, is a high-strength steel mesh used in mining and tunneling projects to stabilize rock surfaces and prevent rockfall.
Manufactured using welded or woven steel wires, mining mesh works together with rock bolts, anchor plates, and shotcrete systems to form a reliable ground support structure.

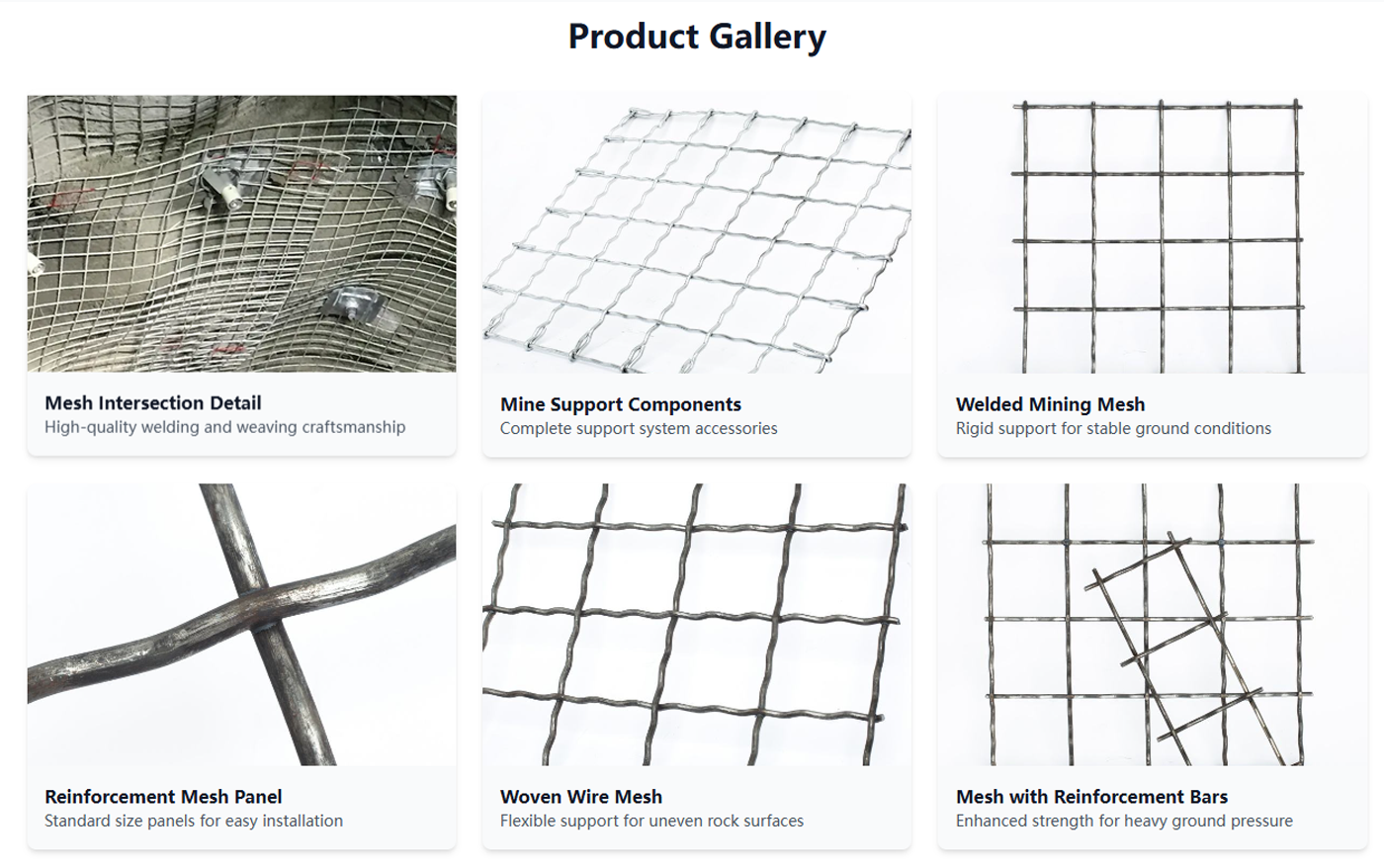

| Key Applications Coal mines and metal mines Tunnel construction and underground projects Slope stabilization and geotechnical works | Product Range Welded Wire Mesh Rigid support for stable ground conditions Woven Wire Mesh Flexible support for uneven surfaces Reinforced Mesh Enhanced strength for heavy loads Custom Solutions Tailored to project requirements |
|---|
Key Benefits
| High Structural Strength Made from low-carbon or high-tensile steel wire to withstand heavy ground pressure | Reliable Ground Support Effectively restrains loose rock and prevents spalling or collapse | Flexible or Rigid Options Welded mesh for rigid support; woven mesh for uneven rock surfaces |
|---|---|---|
| Corrosion Resistance Black wire, galvanized, or coated options for harsh underground conditions | Customizable Specifications Mesh size, wire diameter, and panel size tailored to project requirements | Easy Installation Compatible with standard rock bolts and support systems for quick installation |
Technical Specifications
| Specification | Detail | Notes |
|---|---|---|
| Material | Low-carbon steel / High-tensile steel | Mining-grade quality |

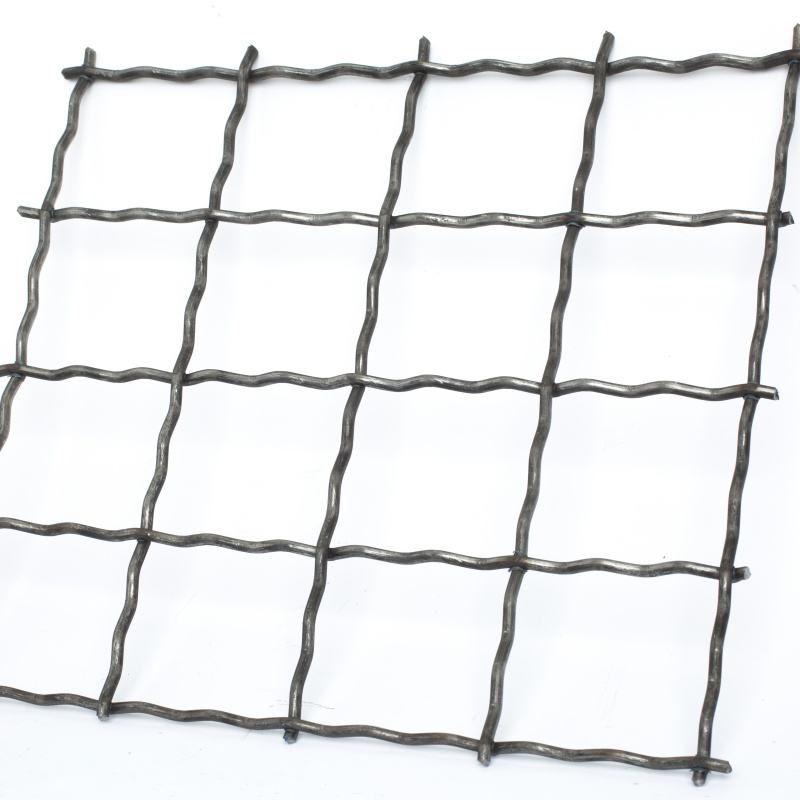

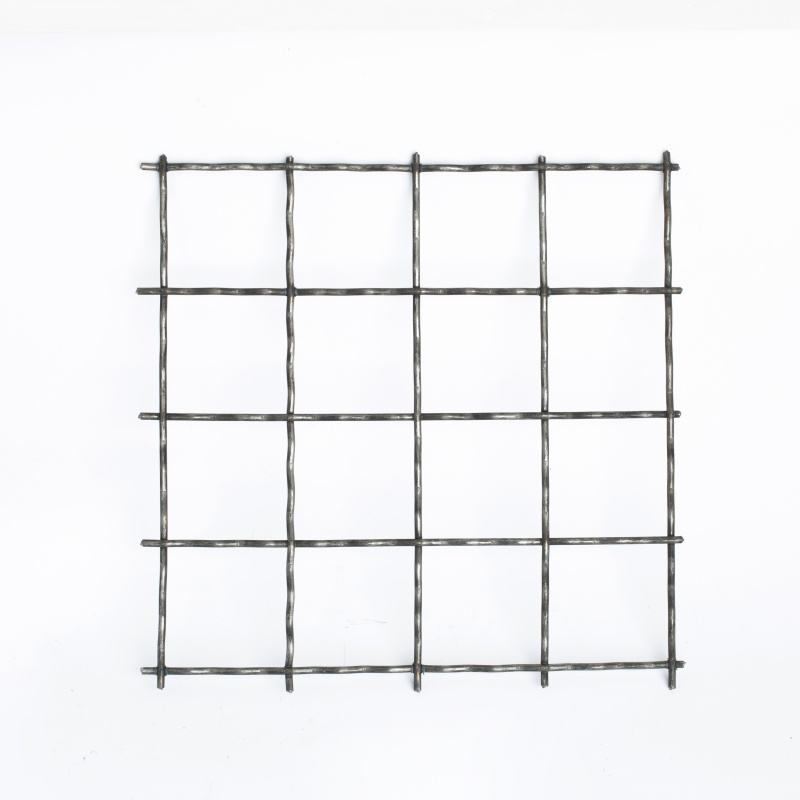

| Mesh Type | Welded / Woven (chain link) | Optional based on application |
| Wire Diameter | 3 – 8 mm | Customizable |
| Mesh Opening | 50×50 – 150×150 mm | Common mining sizes |
| Panel Size | 1×2 m, 2×1 m, or custom | Cut to project needs |
| Surface Finish | Black / Galvanized / Coated | Corrosion protection options |
| Standards | ISO, GB, ASTM | International quality standards |
System Accessories

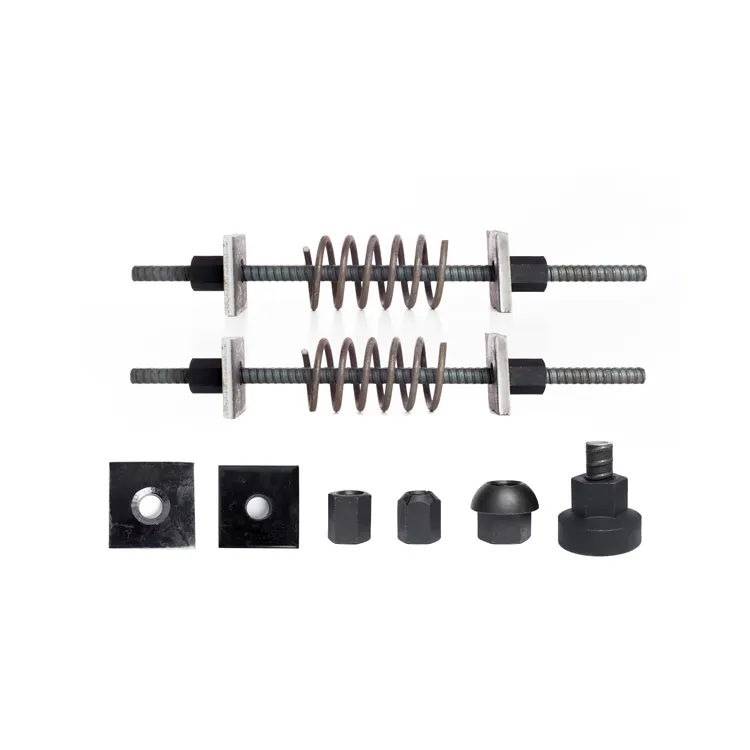

| Rock Bolts Anchor bolts for ground reinforcement | Bearing Plates Washers and support plates | Steel Straps Clips and fastening systems | Shotcrete Support systems integration | Fasteners Fixing wires and accessories |
|---|
Frequently Asked Questions
Can mining wire mesh be supplied with rock bolts and plates?
Yes, we can supply complete mine support systems including mesh, bolts, and accessories. Our integrated solutions ensure compatibility and optimal performance.
Do you support custom production by drawings?

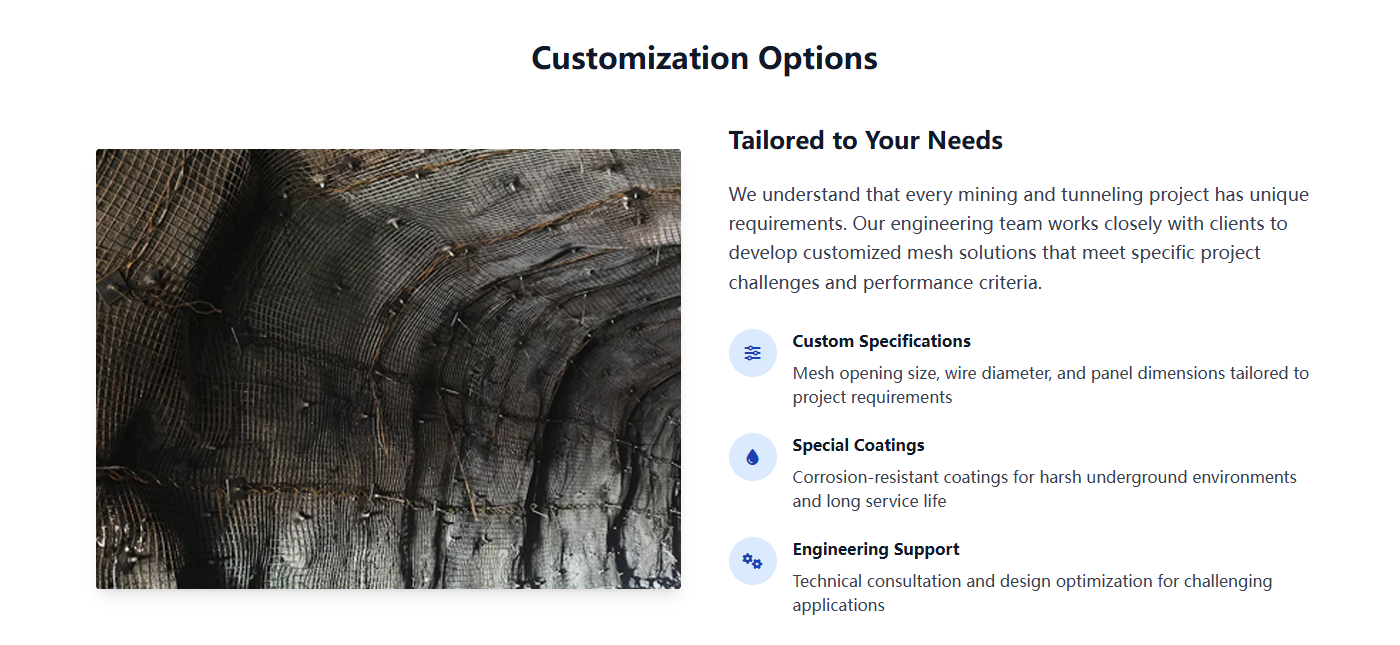

Yes, customized mesh specifications can be produced according to drawings or project requirements. Our engineering team can assist with design optimization and performance verification.
Do you provide export documents?
Yes, MTC 3.1, CO, and other export documents are available. We can provide all necessary documentation for international shipments and customs clearance.
What is the lead time for standard and custom products?
Standard products: 2-4 weeks
Custom products: 4-8 weeks
Urgent orders: Available with priority production scheduling
What quality certifications do you hold?

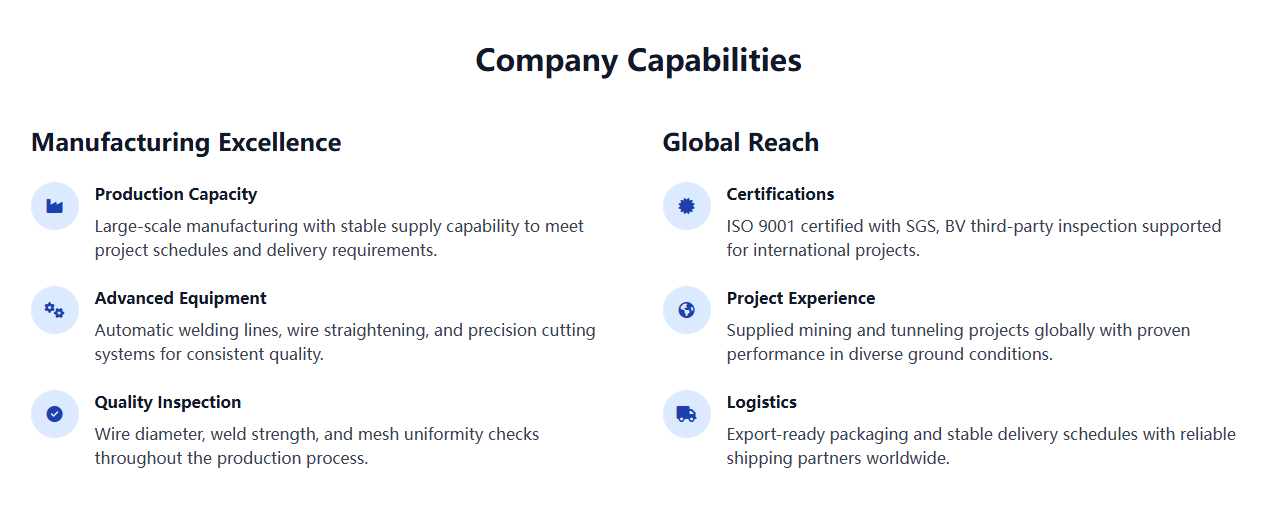

We are ISO 9001 certified and our products meet international standards. Third-party inspection by SGS, BV, or other certification bodies is available upon request.
