Friction Rock Bolt Specifications: What Buyers Should Confirm Before Ordering

When the quotation for friction anchor rods only lists diameter, length, and price, it is difficult to make comparisons. Buyers also need to know which product drawings are applicable, what is included, how the proposed bolts match the drilling layout, and what the referenced performance data actually describes.

For mining engineers, technical buyers, and ground support distributors, the actual starting point is a clear specification package. This guide focuses on the slotted tube friction bolts commonly described in the product catalog as combination friction bolts. CQ Rockbolt has listed this product series for underground mining and tunnel excavation; The exact model and supply details should be confirmed with the current quotation. one

Confirm bolt type before comparing dimensions

Buyer's question: Is the supplier quoting the same type of anchor rod?

The product name is a starting point. Request the manufacturer's model name and drawings to compare the proposed product with project requirements.

When preparing for comparison, the slotted tube friction bolt should be separated from the water filled expansion bolt, self drilling hollow rod, and resin anchor rod. The catalog of CQ Rockbolt includes several product lines, while the industry catalog distinguishes traditional friction bolts from other support devices.

If you want to replace the previously provided bolts, please attach their drawings or approved specifications. Before accepting replacement, similar product names should undergo size and technical review.

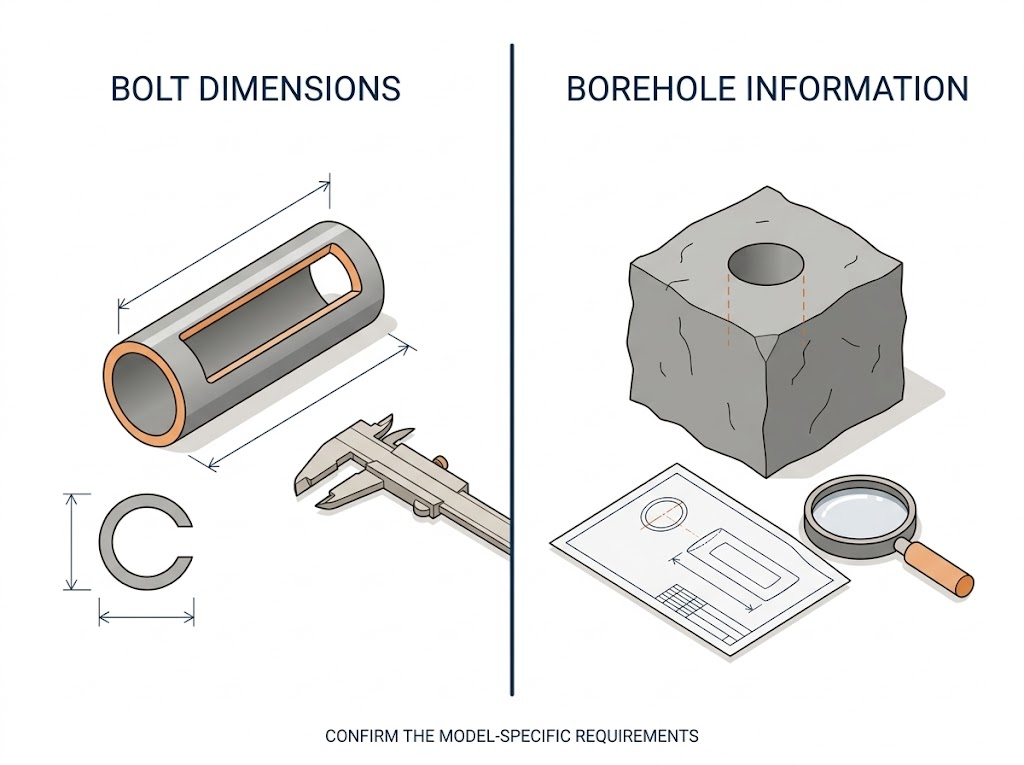

Consider bolt diameter and drilling diameter as separate specifications

Buyer's question: Does the quoted bolt meet our drilling conditions?

Do not use the nominal bolt diameter as the drilling specification. The manufacturer's technical data lists the applicable bolt diameter and recommended hole diameter for each model. three

For procurement purposes, suppliers are required to determine:

• Bolt nominal diameter and related dimensional tolerances.
• The recommended drilling range for this precise model.
• Any installation conditions attached to the suggestion.
• Drawing revisions and installation documents used for quotation.

Provide drilling information available in the project, including specified hole sizes and any measured hole data. Please have the responsible project engineer review the proposed match. Unless a match has been verified, the drilling range extracted from another manufacturer's product with the same name should not be within the order specifications.

Define length, geometric shape, and provided components

Buyer's question: What actually arrived at the scene?

Request to provide drawings with annotated dimensions instead of relying on catalog descriptions. Confirm how the referenced length is measured and identify the features that need to match the installation layout.

Clearly define the supply boundary. Inquire whether the price only includes bolts or specified components with plates and other specified items. When comparing quotes, record each item separately.

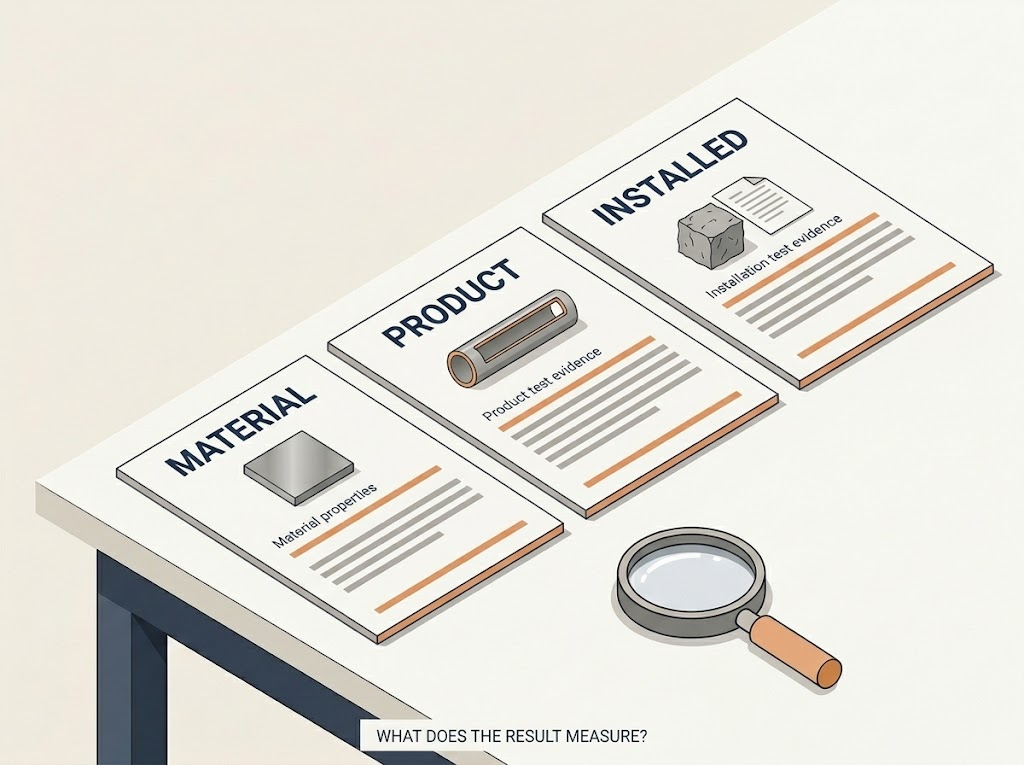

Ask each strength chart what it measures

Buyer's question: Are the values mentioned material properties, product test results, or installation tensile test results?

The technical product table can list the yield and tensile information of different units and distinguish the minimum value from the typical value. Installing load testing is a separate topic. Sandvik's friction bolt file illustrates these differences by separately listing product strength data and describing load testing equipment. three

When reviewing the specifications for friction anchor rods, it is required to provide test types, test items, units, acceptance requirements, and report references. If the quotation is given in kN units, please inquire which component or testing arrangement the value describes. If it provides values in MPa, please inquire which material properties and test reports support it.

For any tensile test report, it is required to provide relevant installation conditions, test procedures, loading arrangements, and results. Ask the project engineer to determine if the evidence is applicable to the expected site and acceptance requirements.

This can prevent directory strength numbers from being considered as performance guarantees for automatic installation.

Written explanation of surface protection and storage requirements

Buyer's question: What coating is included and what evidence supports it?

Surface protection should be a specified requirement in the inquiry and quotation. For example, the product page of a manufacturer in a certain industry identifies hot-dip galvanizing as an optional treatment method for their own friction bolt model. This option cannot determine the surface treatments available on products from other suppliers. three

Request the proposed supplier to specify the surface treatment referenced and any applicable treatment specifications, inspection records, or treatment instructions. Provide project exposure and expected service requirements for technical review.

Also inquire about how bolts are packaged and labeled during transportation and storage. Avoid accepting unspecified descriptions such as' corrosion resistance 'as a complete surface treatment requirement.

Agree on documents and inspections before placing an order

Buyer's question: What records will be attached during shipment?

Build the document list into the procurement discussion. According to the project specifications, it is required to confirm the availability and scope of the following content:

• Approved product drawings and current technical data sheets.
• The material or product test report of the referenced model.
• Dimensional inspection records.
• Surface treatment records (if specified).
• Product and packaging identification associated with the order.
• Installation guide and any separately agreed upon testing documents.

For each record, ask what product, batch, or shipment it covers. The general company certificate should be evaluated separately from the evidence of the specific model purchased.

Resolve replacement issues before production or shipment. Require suppliers to identify any proposed changes to dimensions, materials, finishes, or accessories and obtain the necessary project approvals.

Comparison of quotations within the same scope

Buyer's question: Are we comparing equivalent quotes?

When selecting friction anchor rod suppliers, use one inquiry sheet for each quotation. Compare the commercial terms of model and drawings, supplied components, document packaging, quantity, packaging, delivery destination, and quotation.

Require each supplier to clearly state any exceptions. Include the minimum order quantity, production delivery cycle, shipping arrangement, and quotation validity period as separate fields to evaluate significantly similar unit prices based on the actual supply scope.

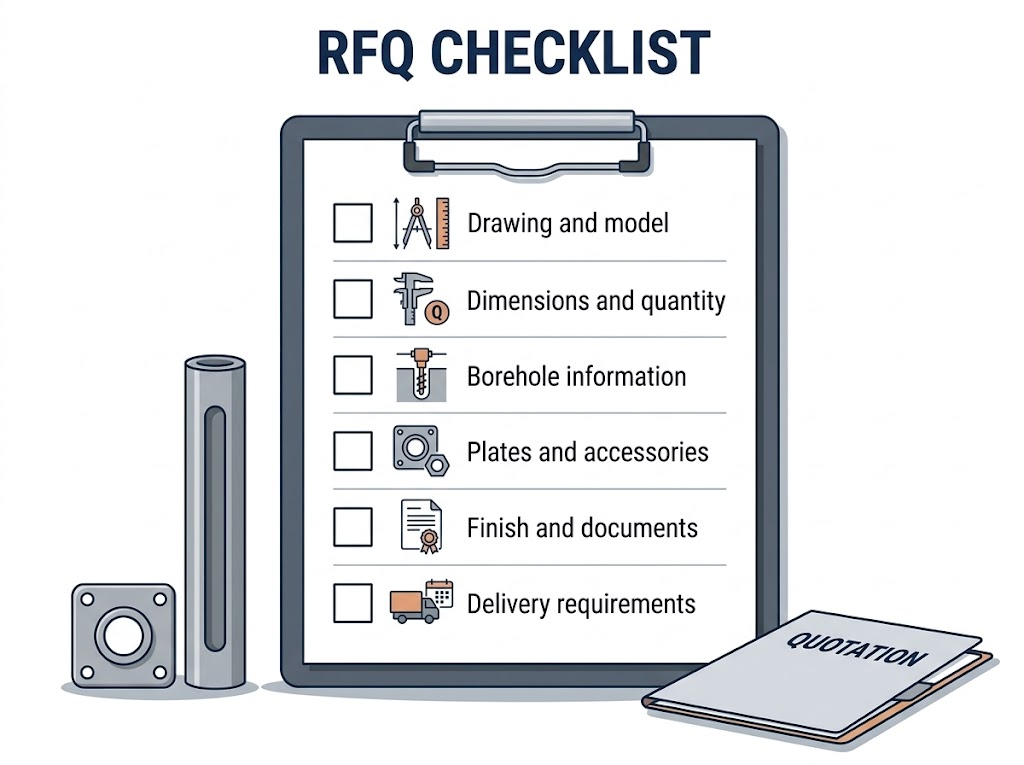

Practical query template

We are procuring slotted pipe friction anchor rods for underground mining/tunnel projects. Please review the attached drawings and project requirements, and confirm the model you have proposed.

Required bolt size and quantity: [insert].

Drilling and drilling information available: [insert].

Required boards and accessories: [insert].

Surface protection and document requirements: [insert].

Delivery destination and required delivery date: [insert].

Please confirm the supplied items, applicable technical documents, any deviations, packaging details, minimum order quantity, production delivery cycle, and delivery terms.

Discuss your friction anchor requirements with CQ Rockbolt

The product catalog of CQ Rockbolt includes split friction anchor rods for underground mining and tunnel excavation. To inquire about this scope, please send your project drawings, required dimensions, quantity, drilling information, and document requirements.

Request confirmation of the model, components provided, and applicable technical information stated in the quotation. A clear specification package provides a more useful basis for buyers and suppliers to review orders.
